VVDI/AVDI Device Only


Note: It is not the original product of VVDI/AVDI

Product Number : GK-4001-1
Categories : Goldcar MB Testing Tools
Manufacturer : GOLDCAR

300,00 500,00

650,00 for 3 item(s)

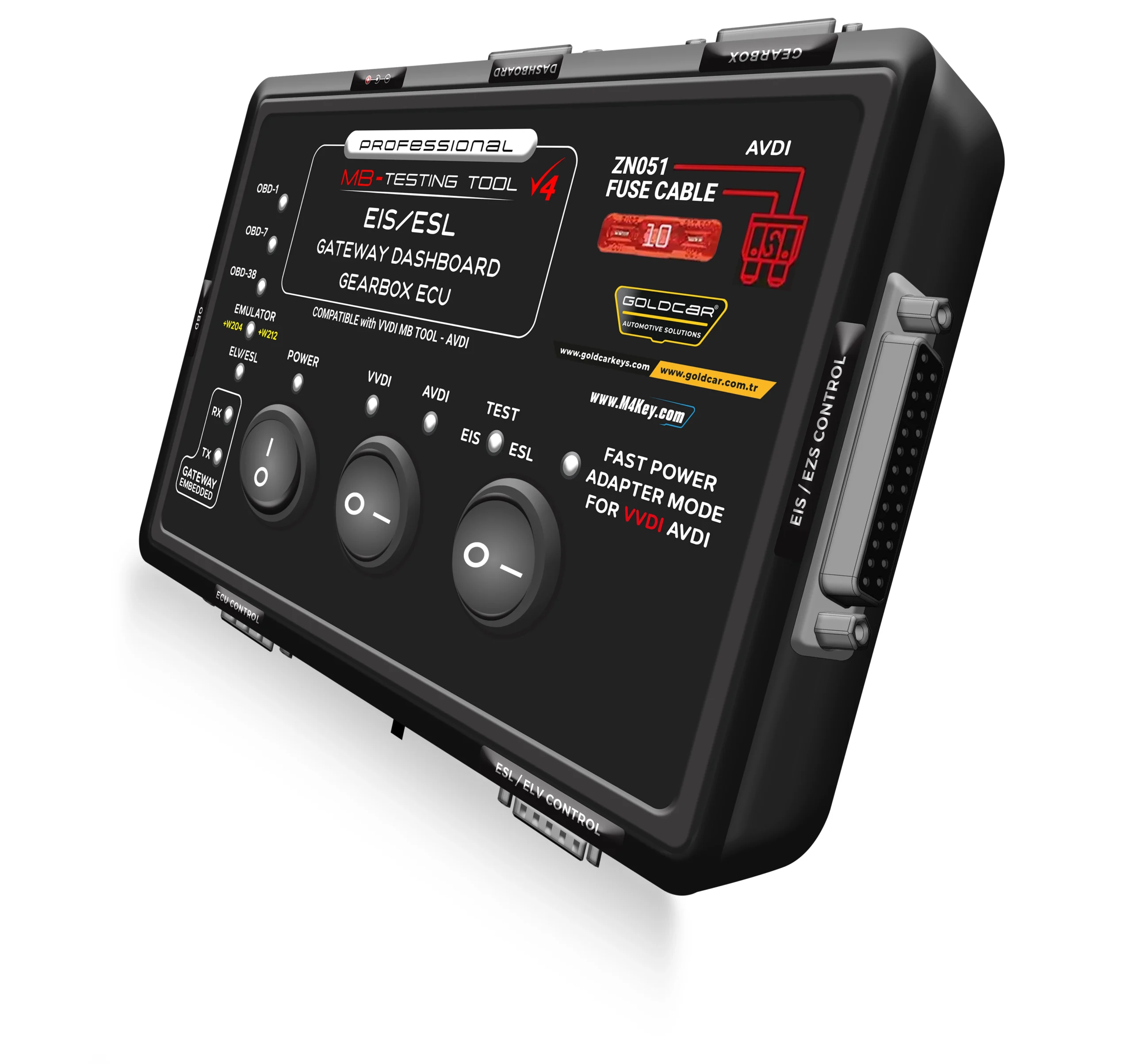

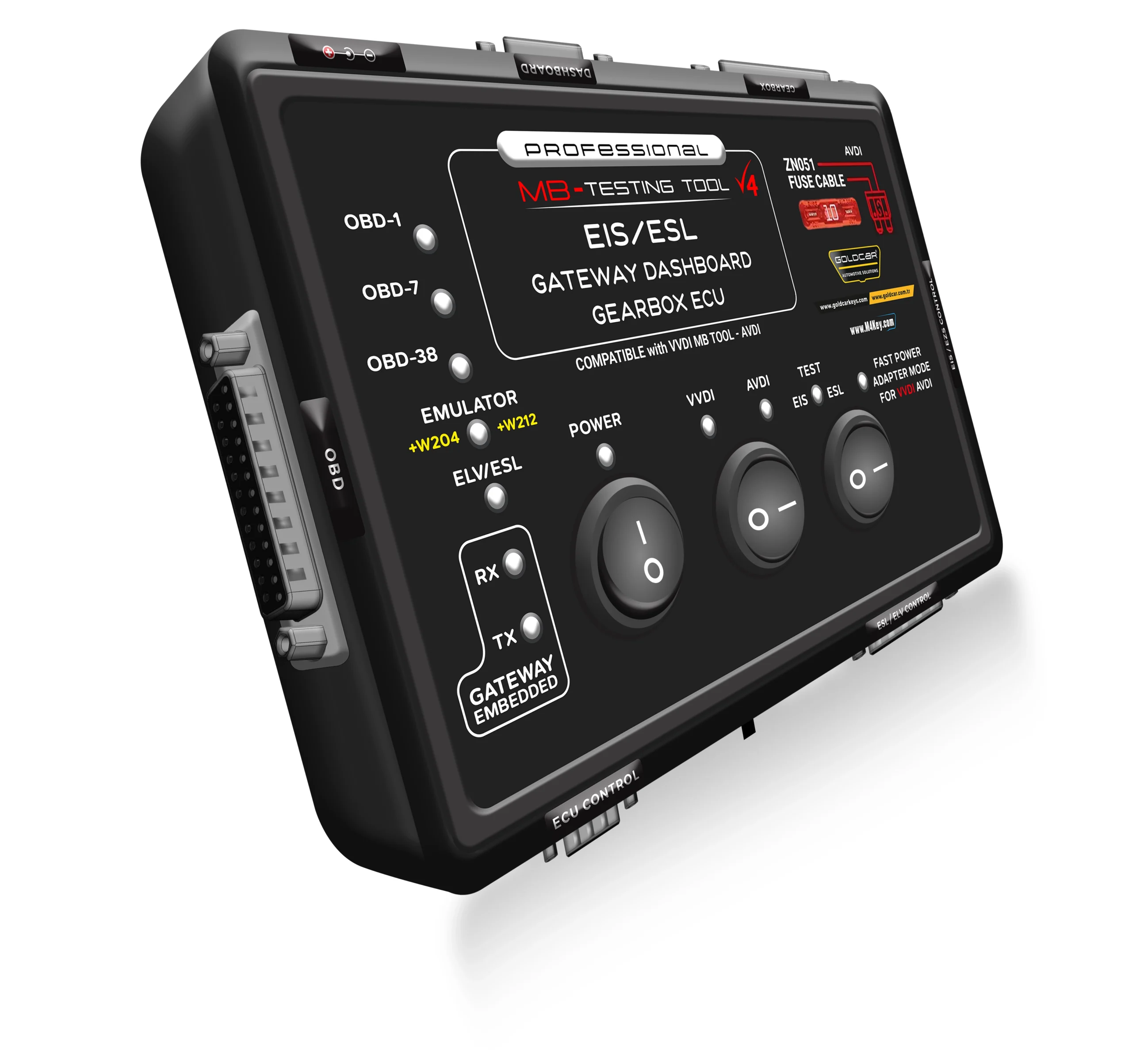

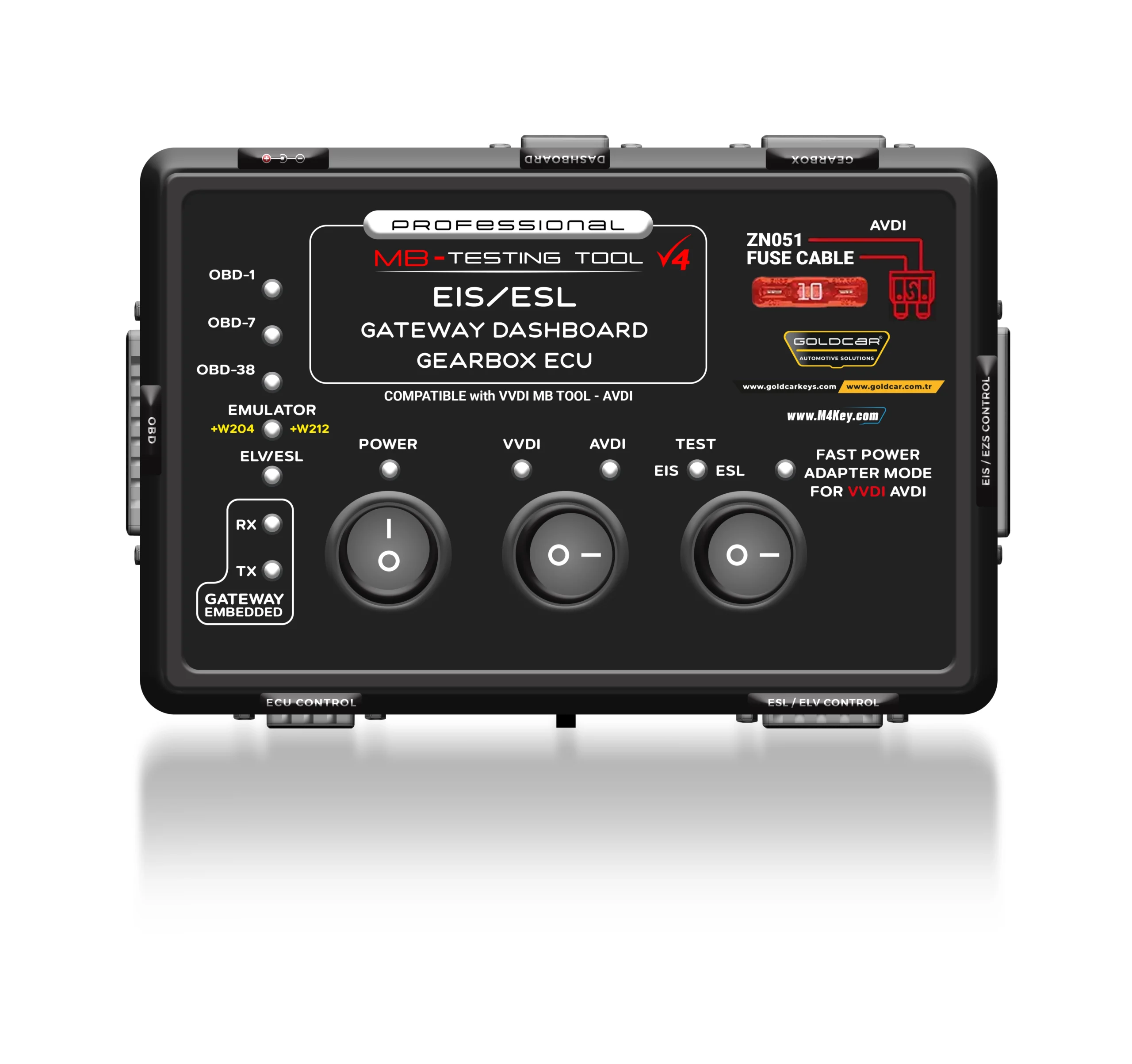

Professional MB Testing Tool EIS/ESL Gateway Dashboard Gearbox ECU Compatible with VVDI MB TOOL – AVDI

MB EIS ESL TEST PLATFORM

Compatible with VVDI/AVDI

Supports testing of FBS4 ECU, Working with Xhorse VVDI MB, Key Tool Plus, Autel MaxiIM IM508, IM608, CGDI Benz, AVDI Programmer and so on.

EIS ESL Dashboard Gateway Testing Tool Highlights

  1. Supports old and new FBS4 EIS testing
  2. Built in Gateway enable you testing the EIS without connecting extra gateway
  3. Compatible with Mercedes key programmers such as:
  • VVDI MB Tool
  • AVDI
  • ZED-FULL
  • CGDI Mercedes
  • MBE TOOLS
  • AUTEL IM508, IM608

• And others …



EIS ESL Dashboard Gateway Testing Tool Features:

1.The new device designed for on-bench testing of EZS (EIS), ESL (ELV), Dashboard & gateway Comes with built in ESL Emulator inside and has automatically mode switching

2.It enables you to test the EIS with the car ESL or with the emulator if original ESL / ELV is not available using Emulation mode.

3.You can test both old (Motorola based EZS) and new (NEC based) units without the car – just connect them with special set of cables.

4.The new Generation comes with built in ESL / ELV emulator for W204, W207 to test the EIS without the original ESL / ELV (must be programmed before testing)

EIS ESL Dashboard Gateway Testing Tool Supported List

EIS/EZS:

W208 / W210 ( Embedded Emulator ) Avdi and VVDI MBTOOL  read password + Elv control + Obd control

W209 / W211 ( Embedded Emulator & Embedded GateWay ) Avdi and VVDI MBTOOL read password + Elv control + Obd control

W169 / W245 ( Embedded Emulator & Embedded GateWay ) Avdi and VVDI MBTOOL read password + Elv control + Obd control

W203 / W639 / VITO ( Embedded Emulator ) Avdi and VVDI MBTOOL read password + Elv control + Dash board control + Obd control

W906 / CRAFTER / SPRINTER ( Embedded Emulator ) Avdi and VVDI MBTOOL read password + Elv control + Dashboard control + Obd control

W215 / W220 Avdi and VVDI MBTOOL read password + Obd control

W204 / W207 / W212 Avdi and VVDI MBTOOL read password( W204/W212 Embedded Emulator ) + Elv control + Obd control + Dashboard control

W164 Avdi and VVDI MBTOOL read password ( Embedded GateWay )+ Obd control

W221 Avdi and VVDI mbtool read password + Obd control

W246 Avdi and VVDI mbtool read password + Dashboard control + Obd control

W212 Avdi and VVDI mbtool read password + Dashboard control + Obd control

New – W447 / W176 new model ( FBS4 + FBS3 ) read password ready + Dashboard control + Elv control + Obd control

New – W222 / W205 new model ( FBS4 + FBS3 ) read password ready + Dashboard control + Obd control



VVDI/Avdi Device Only

Click to icon for download product manual.
