PSA Emergency Start / PSA Bypass Mini





PSA EMERGENCY START OBD MINI

SIEMENS, JOHNSON CONTROLS , JCI, VALEO AND CONTINENTAL BY EMERGENCY START OBD II

(without the new vehicles with Delphi BSI).

PSA Bypass Emergency Start

PEUGEOT Citroën PSA supports all BSI down below  :

BSI LIST:

• Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00) . EEPROM 95160
• Siemens 1L00M+95128/95256 CAN (BSI-S0X-00). EEPROM 95128/95256
• Continental SC667050+95256 CAN (BSI-Q0X-00). EEPROM 95256
• Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00).EEPROM 95128/25128
• Valeo 2M48H+24C128 CAN (BSIEV-X0X-00) . EEPROM 24C128
• Valeo SC667152+95256 CAN (BSI-N0X-00). EEPROM 95256
• Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X). EEPROM 95128
• Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X). EEPROM 95128
• Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX). EEPROM 95128

Supported cars:

Peugeot 1007, Peugeot 206 (1,4 HDI, 2.0 HDI), Peugeot 207, Peugeot 306 (2.0 HDI), Peugeot 307 (2.0 HDI), Peugeot 307 2005+, Peugeot 208 2012+, Peugeot 2008 2013+, Peugeot 301 2012+, Peugeot 308, Peugeot 3008, Peugeot 508, Peugeot 5008, Peugeot 406 (2.0 HDI), Peugeot 407, Peugeot 607 2006+, Peugeot 807 2006+, Peugeot Expert II, Peugeot Partner (2.0 HDI), Peugeot Ranch (2.0 HDI), Peugeot Partner 2008+Citroen C2, Citroen C3 (1.4 HDI), Citroen C3 2006+, Citroen C3 II, Citroen DS3, Citroen C4, Citroen C4 Picasso, Citroen C4 II, Citroen DS4, Citroen C5 (2.0 HDI), Citroen C5 2004+, Citroen C5 II 2007+, Citroen DS5, Citroen C6, Citroen C8 2007+, Citroen Jumpy II, Citroen Xsara (2.0 HDI), Citroen Xsara Picasso (2.0 HDI), Citroen Saxo (1.4 HDI), Citroen Berlingo (2.0 HDI), Citroen Berlingo 2008+, Citroen Xantia (2.0 HDI), Lancia Phedra 2008+, Citroen Picasso (2.0 HDI), Citroen C-Elysee 2012+



Usage Requirements:

1. Car has to be equipped with mechanical key.
2. Car has to be equipped with original parts.
3. The device will work only in case of a lost key.



How to work with PSA EMERGENCY START OBD MINI?

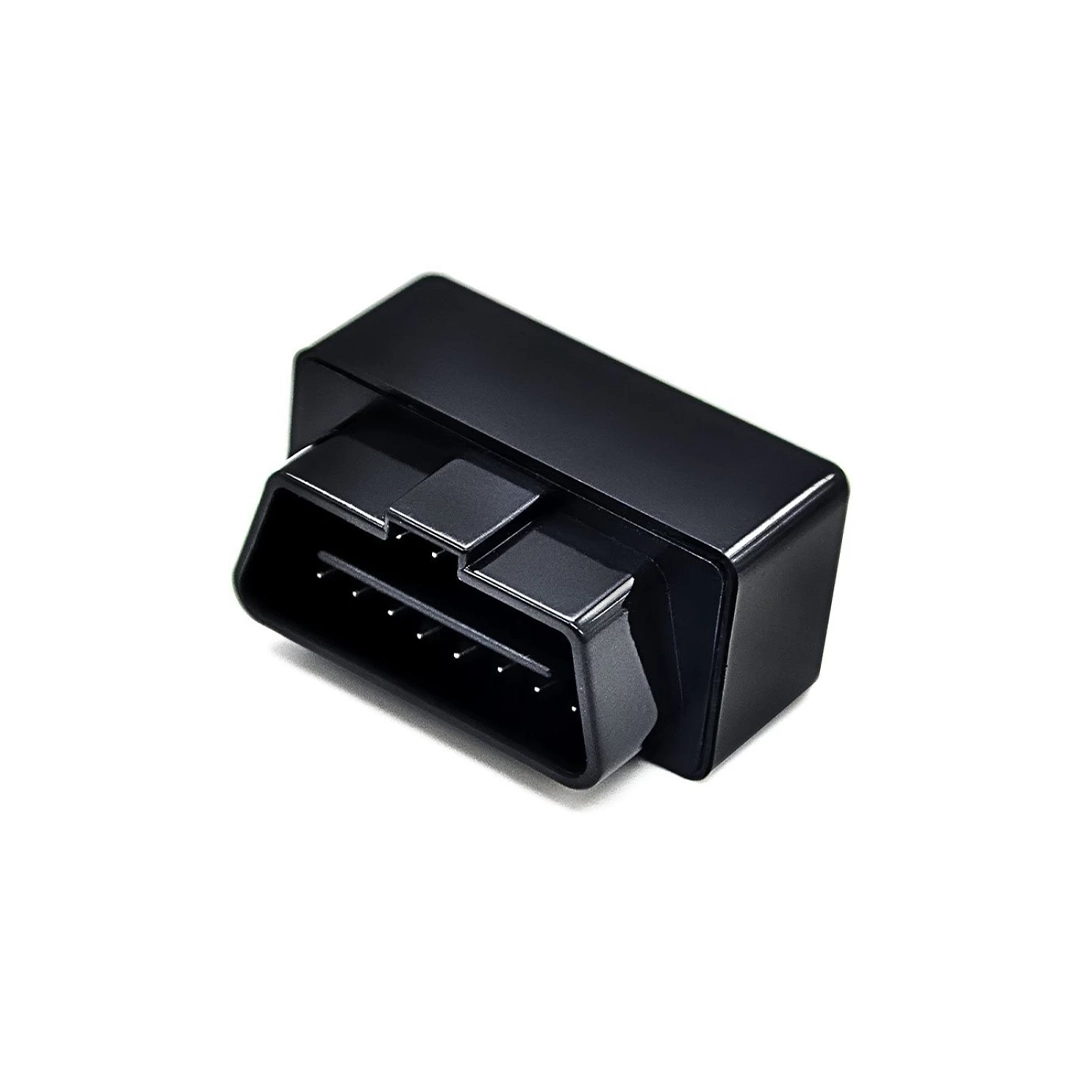

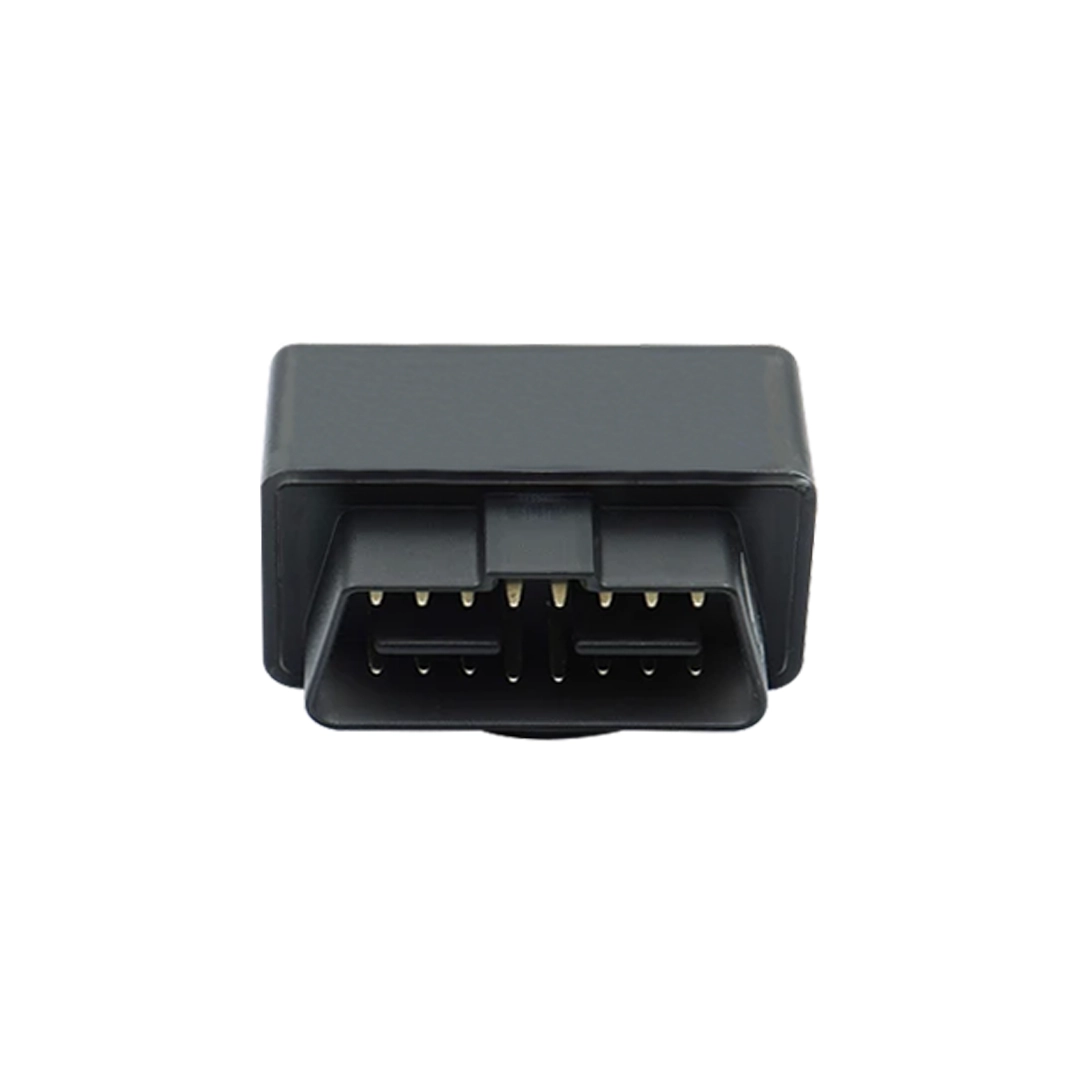

1. To use PSA EMERGENCY START OBD MINI you just need to connect it to the OBD2 socket in the car.
2. When the product is connected to OBD, the red LED (power) will stay lit. This means the power is on.
3. When we plug the product into OBD, it will automatically enter PIN code reading mode for 10 seconds.
4. After 10 seconds, the green LED (code) will blink fast, the PIN has been read, the product is ready. (It is waiting for you to turn on the ignition).
5. When you open the contact, the green LED will stay still. (Emergency start mode is ready.)
6. The car is ready to start.
7. If the car is not working normally, then retry the procedure from the beginning.

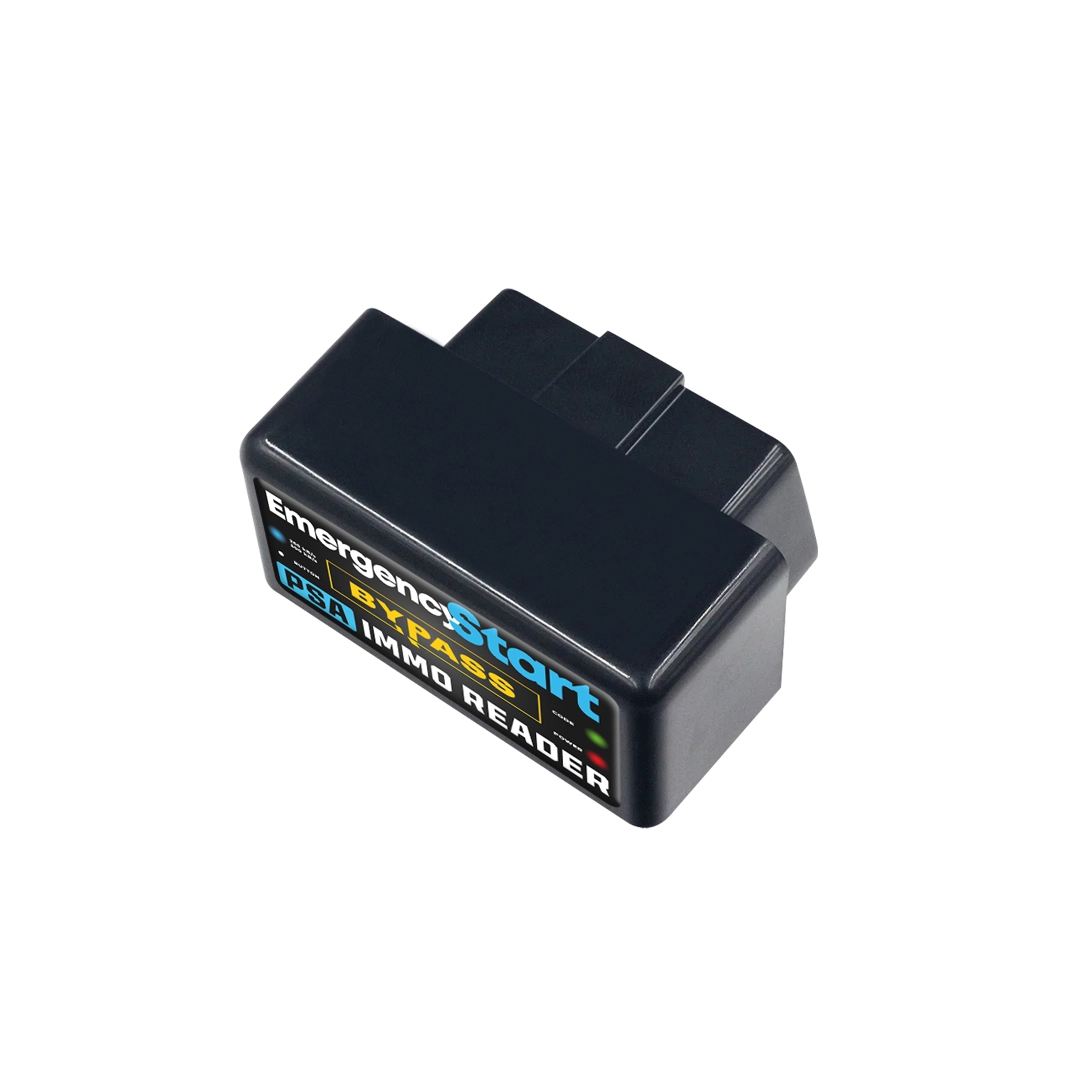

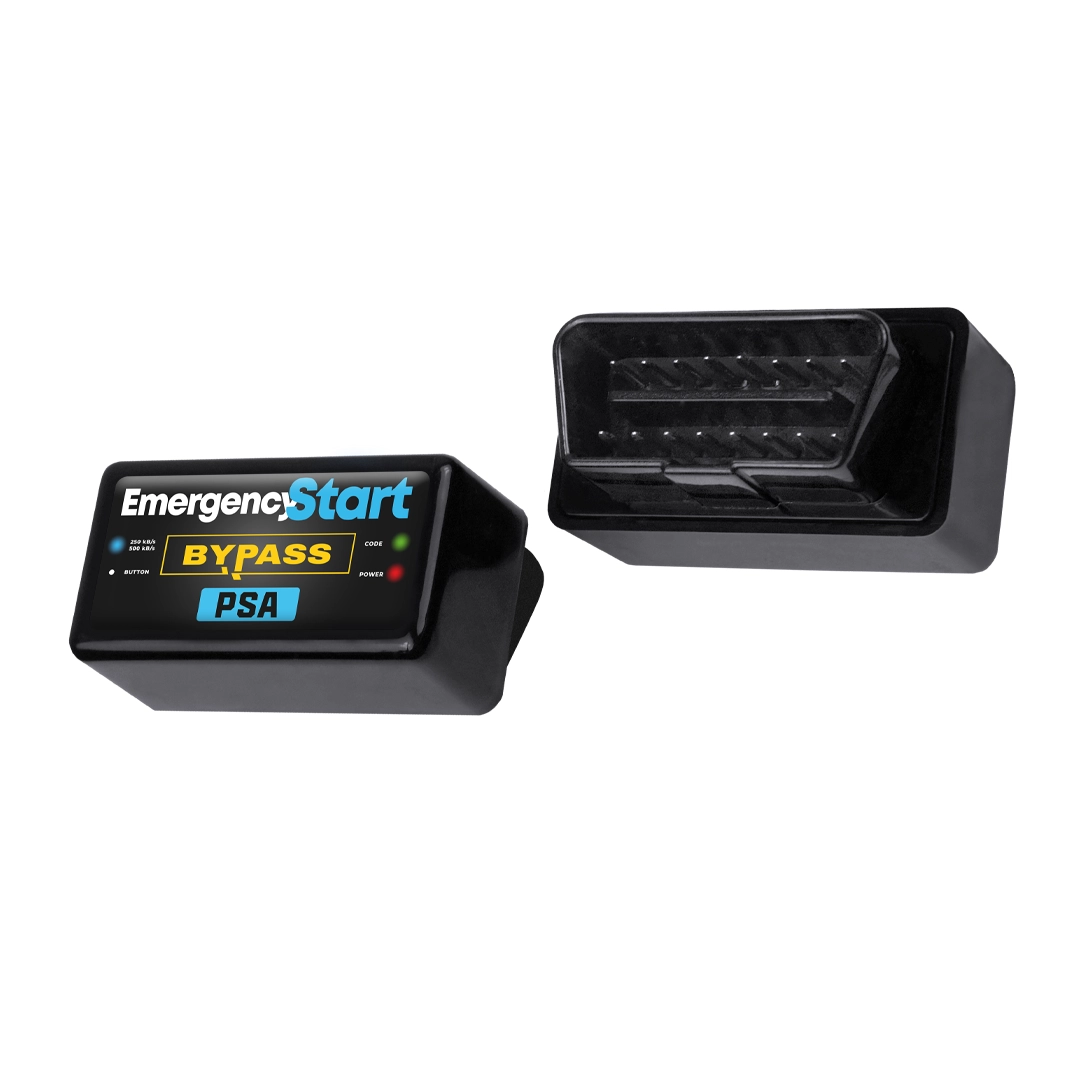

PSA Emergency Start OBD Mini Led and Button Status:

1. Red LED (Power)
2. Green LED (Code)
3. Blue LED (Can-speed mode.)



Attention!

When the green LED (code) starts blinking, the device succesfully has read the PIN code.

When you turn the ignition on, if the car is not working, please change 500kB/s can-speed to 250kB/s by pressing the button on the device. (Blue LED)
