Mercedes 7in1 Professional Service Test Platform Compatiable with For Star Diagnosis, VVDI Keytool, VVDI Mbtool, Avdi, Autel, Cgdi, Simon Touch

 Mercedes 7in1 Professional Service Test Platform

Test and Program All EIS / ESL / EZS Systems Without a Vehicle Using a Single Device

An all-in-one desktop (bench) test platform developed for professional auto locksmiths and electronic specialists working on Mercedes-Benz electronic systems.

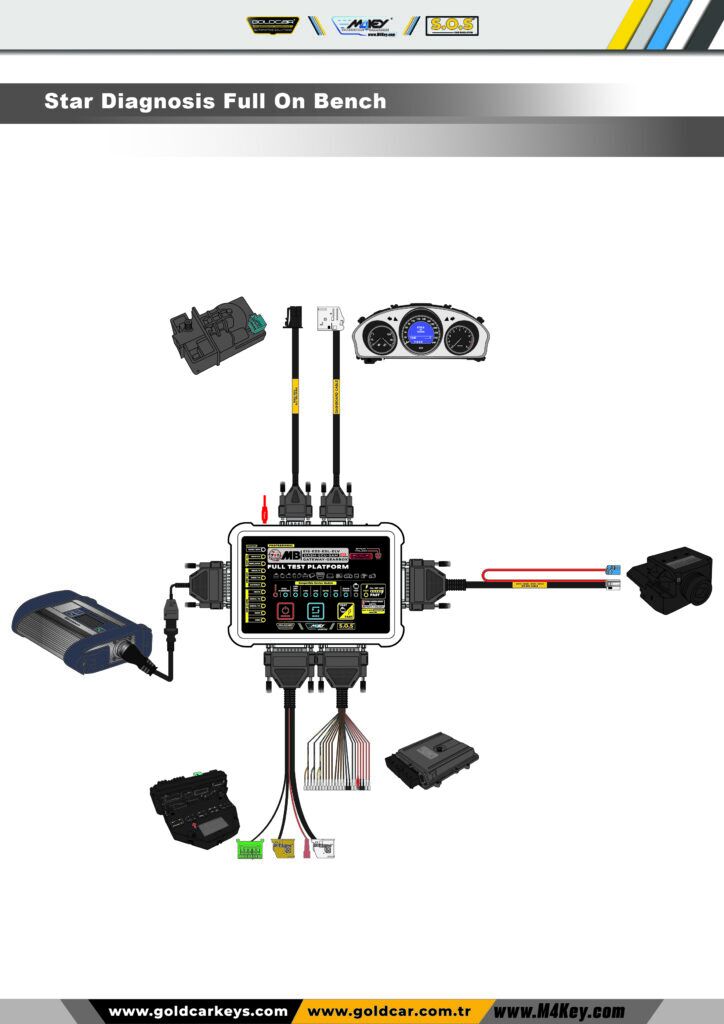

FULLY COMPATIBLE WITH ORIGINAL STAR DIAGNOSIS (OEM SUPPORT – Full diagnostics and testing without a vehicle using original Star Diagnosis)

The device operates in full compatibility with Mercedes-Benz Star Diagnosis.

 On the desktop without a vehicle:

• Diagnostics (fault detection) can be performed on all modules
• Components can be tested
• Coding and personalization operations can be carried out
• Provides one-to-one testing with real vehicle simulation

 You can perform all operations done on the vehicle directly on the desktop

 REAL VEHICLE EXPERIENCE – ON YOUR DESK

 With the original Star device:

• EIS / EZS
• ESL / ELV
• Dashboard
• Gateway
• All other modules

can be tested as if they were installed in the vehicle.

 ALL-IN-ONE SYSTEM – NO EXTRA DEVICES REQUIRED

•  Gateway included
•  ESL / ELV Emulator included
•  FAST system included
•  100% vehicle-free testing

•  No external Gateway required
•  No external Emulator required
•  No FAST Adapter required
•  No G-BOX / ZN051 required

 All systems are integrated into a single device

 SMART MULTIPLEX SYSTEM (7 DEVICES IN ONE PLATFORM)

Thanks to the advanced multiplex infrastructure inside the device:

•  7 different popular devices are combined into one platform
•  Automatically adapts according to the connected device with auto mode switching

SMART AUTO COMPATIBILITY SYSTEM
 Automatically switches to FAST mode depending on the connected device

 GENERAL FEATURES

• 7in1 integrated test platform
• EIS / EZS / ESL / ELV / Dashboard / Gateway testing and simulation
• Built-in ESL / ELV emulator
• Built-in Gateway simulator
• Desktop operation without a vehicle (Full Bench Test)

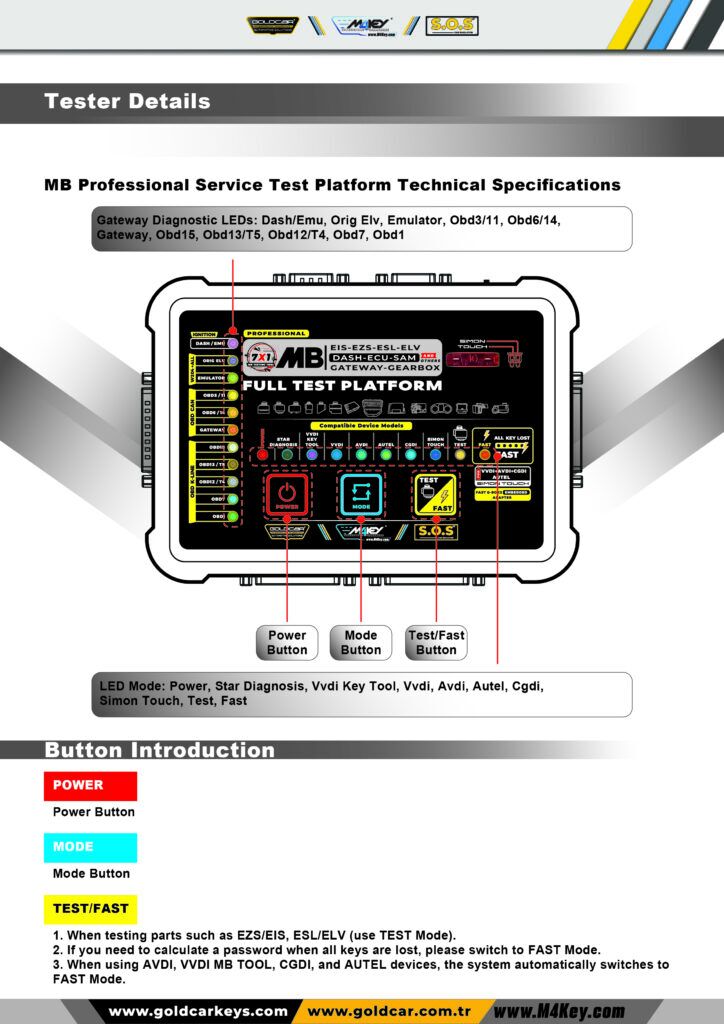

• Dashboard ignition button to power the panel
• 3 independent output ports with identical pin configuration
• Plug-and-play operation
• Automatic FAST mode switching

 ADVANCED FUNCTIONS

• EIS / EZS password reading
• Key testing and verification
• ESL / ELV programming and personalization
• EIS renewal and erase operations
• Instrument cluster testing and control
• OBD communication simulation
• CAN & K-Line protocol support

 FULL COMPATIBILITY (NO ADDITIONAL HARDWARE)

• Star Diagnostic
• VVDI Key Tool
• VVDI MB Tool
• Abrites AVDI
• Autel IM508 / IM608
• CGDI MB Tool
• Simon Touch

 All devices automatically switch to FAST mode

 SUPPORTED VEHICLE SERIES

• W202 / W208 / W210
• W205 / W222
• W906 / CRAFTER / SPRINTER
• W215 / W220 / W230
• W164 / W251
• W169 / W171 / W209 / W211 / W245
• W172 / W204 / W212
• W166 / W176 / W246 / W447
• W203 / W463 / W639 / VITO / K-Line + CAN protocol
• W221 / W216

 FBS3 + FBS4 support

 SUPPORTED ESL / ELV SERIES

• W203 / W209 / W211 / W219 / W639 / W906 (5 pin)
• W202 / W208 / W210 (5 pin)
• W169 / W245 (4 pin)
• W204 / W207 / W212 (4 pin)
• W176 / W447 (5 pin)
• W203 / W639 (3 pin)

 EIS / EZS / ELV / ESL TESTING AND PROGRAMMING

• Testing without vehicle connection
• EIS testing with built-in emulator
• Direct connection with original ESL / ELV
• ELV programming and personalization
• Testing whether the key is functional

 SMART SYSTEM DETAILS

• Support for Motorola-based legacy systems
• Support for NEC-based new generation systems
• Automatic emulator switching
• Built-in Gateway and ELV emulation

 3 OUTPUT PORT ADVANTAGE

•  3 different outputs with identical pinout structure
•  You can connect using any desired port
•  Provides great convenience for professional use

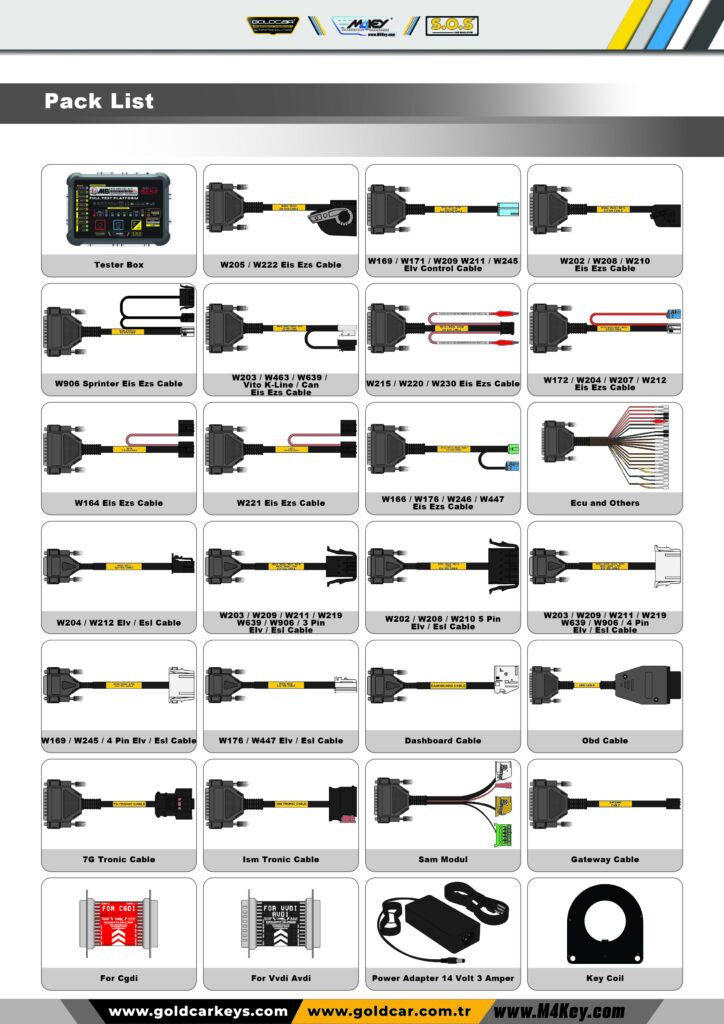

 PACKAGE CONTENTS

• Original socket set compatible with all Mercedes models
• EIS / EZS connection cables
• ESL / ELV cables
• ECU output cable
• Transmission cables (7G-Tronic / ISM)
• W204 / W207 / W212 SAM Connection Cable
• Power Adapter 14 Volt 3 Amper
• Key Coil

 TARGET USERS

• Auto locksmiths
• ECU repair specialists
• Mercedes electronics experts
• Professional service centers

 WHY GOLDCAR 7in1?

• All systems in one device
• Eliminates the need for additional equipment
• Faster and more practical use
• Stable and professional infrastructure
• Designed for real service use
