OBD 2 ON Bench Diagnostic Tool | By Goldcar

OBD II ON Bench Diagnostic Tool | By Goldcar

Automotive Universal Test Platform

This tester supports connecting all cars to all control units on the bench and supports CAN-BUS communication. The cables are produced for the use of all automotive electronics and locksmith personnel on the market.

OBD2 ON BENCH is a brand of automotive diagnostic and maintenance tools with highly professional technology. Offering affordable diagnostic tools, essential programming tools and mileage correction tools for auto mechanics, immobilizer and screwdriver enthusiasts. It also provides technicians with OBDII ECU connectors.

Multiple functions

OBD2 On Bench Diagnostic Tool is the latest test platform for OBDII protocol communications detection and ECU maintenance/diagnosis/programming/coding etc.

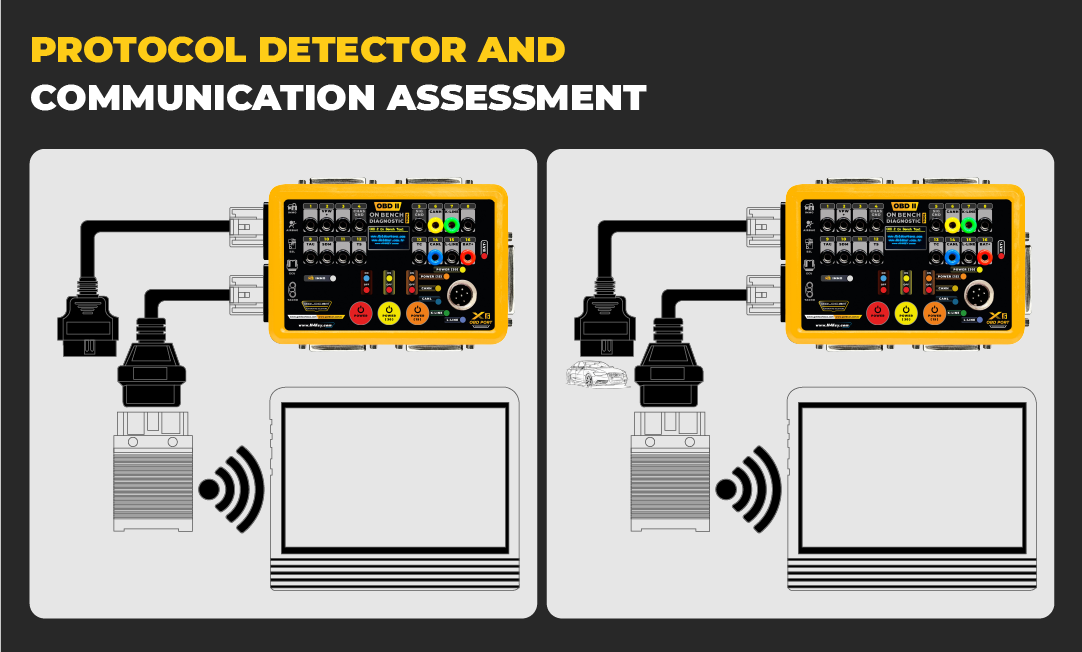

OBDII protocol recognition and evaluation of protocol communications: Connect the vehicle and diagnostic device via OBDII to find out whether the OBDII diagnostic interface communication is in order in the vehicle, and check whether the diagnostic programmers and decoding devices can send OBDII signal communication.

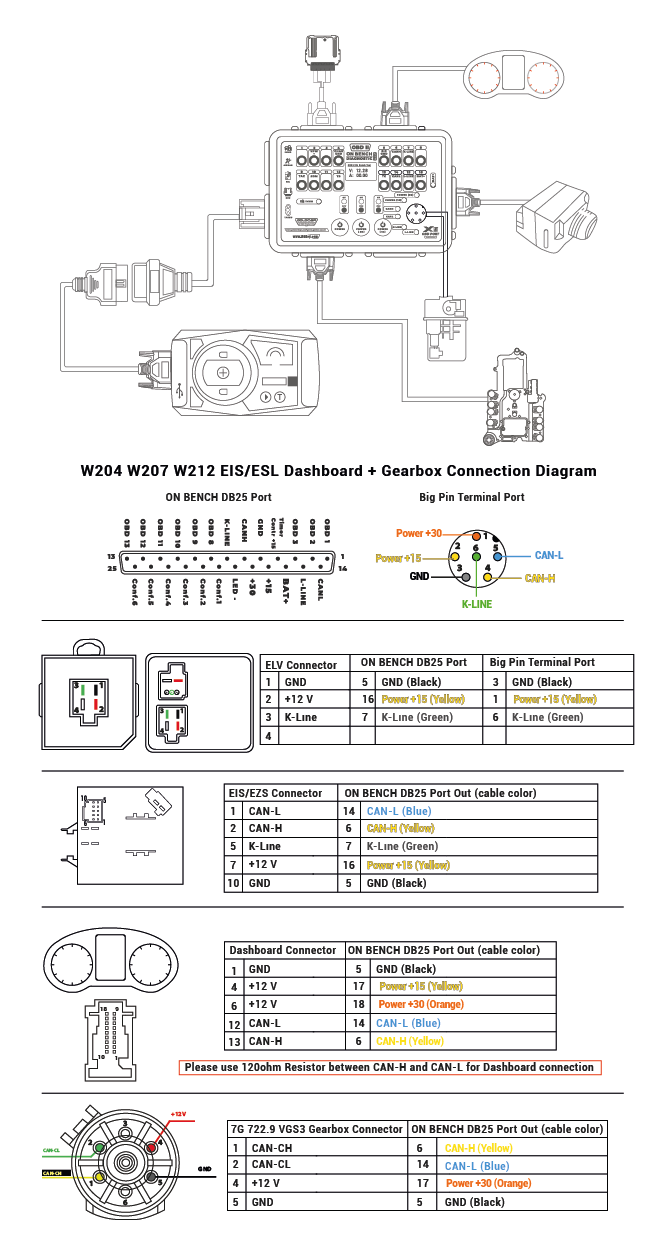

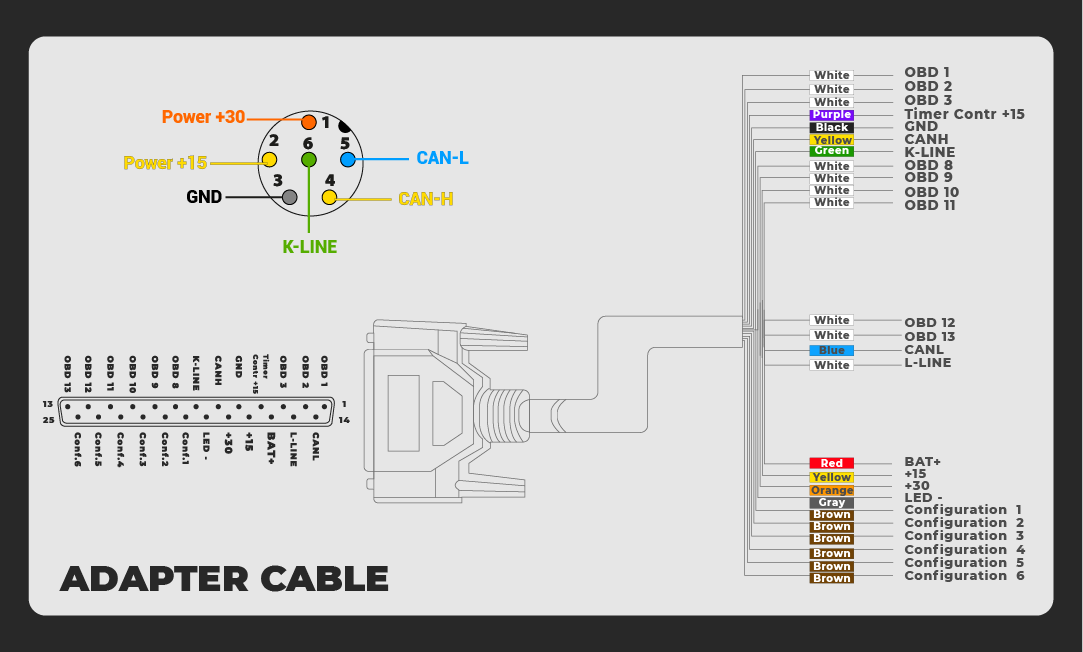

Voltage and Current Display: The OBD2 On Bench Diagnostic Tool  is connected to the ECU module via a banana plug or DB25 connector which can directly display the current data. You can easily evaluate whether the cable is connected correctly or whether the ECU module is OK.

CAN BUS and K-LINE log display: When the diagnostic programmer communicates with interfaces 1, 9, 3, 11, 12, 13 and 8 of the OBD2 adapter box, CAN-BUS and K-LINE log are displayed.

Activate dashboard or IMMO module: For all vehicle data loss, you can activate dashboard or IMMO module with OBD2 On Bench Diagnostic Tool  before using other tools to avoid all data loss .

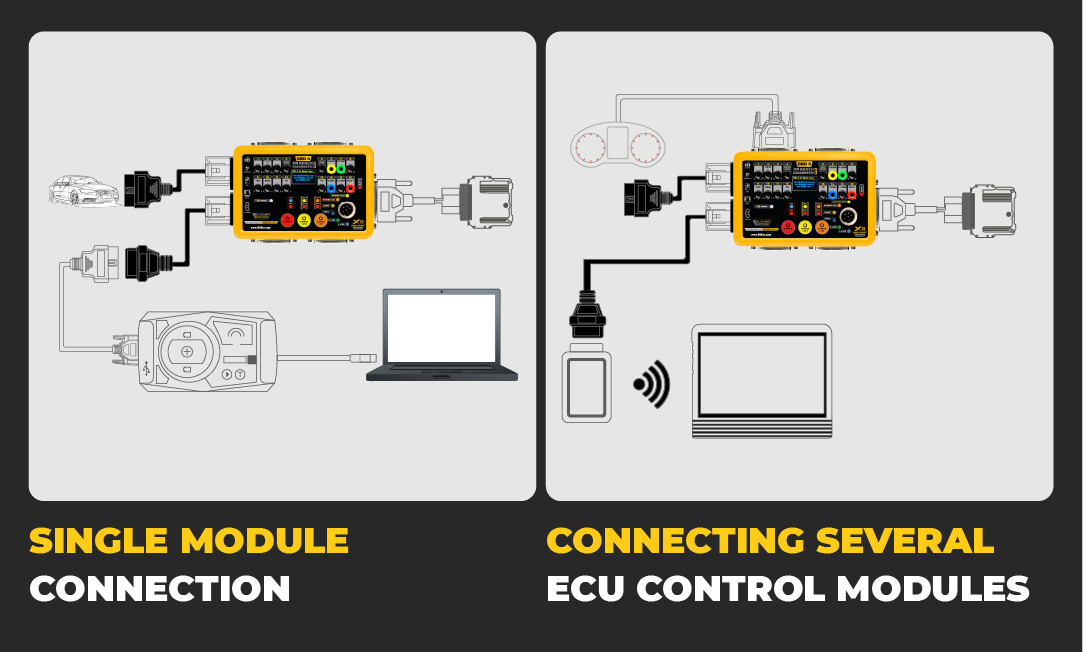

Single ECU Connection or Multiple ECU Connection Modules: The OBD2 On Bench Diagnostic Tool can connect single or multiple ECU modules at the same time. It is a good assistant for diagnosis, programming and decoding.

OBD1 Diagnostic Interface to Standard OBD2: The OBD2 On Bench Diagnostic Tool uses a banana plug to convert the OBD1 interface into OBD2 interface according to the communication protocol of the diagnostic interface.OBD1 Diagnostic Interface to Standard OBD2: The OBD2 On Bench Diagnostic Tool uses a banana plug to convert OBD1 interface into OBD2 interface according to the diagnostic interface communication protocol.

Extension cable function: The space on the diagnostic interface is too narrow to connect the diagnostic device, or the user finds that the diagnostic cable is not long enough during maintenance. The OBD2 connector can be extended to 1.2m.

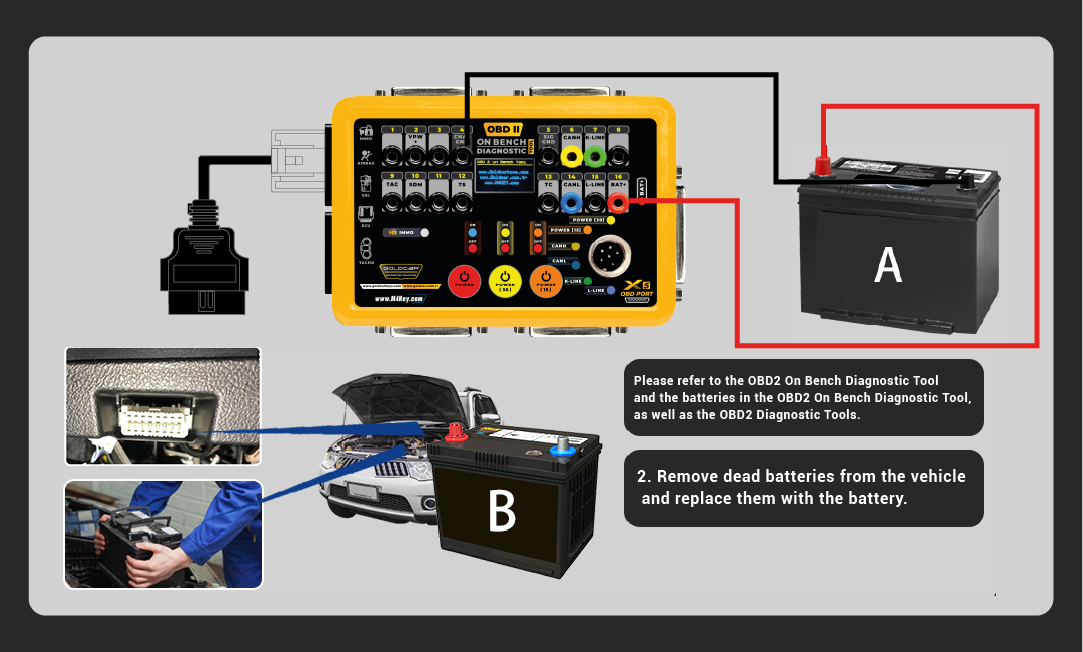

Auxiliary power supply during battery replacement: The purpose of the auxiliary power supply is to power the vehicle before battery replacement via the OBD2 On Bench Diagnostic Tool to maintain the energy status of the vehicle ECU and avoid data loss.

Save data when replacing the battery
When changing the battery, the auxiliary power supply prevents data loss.
